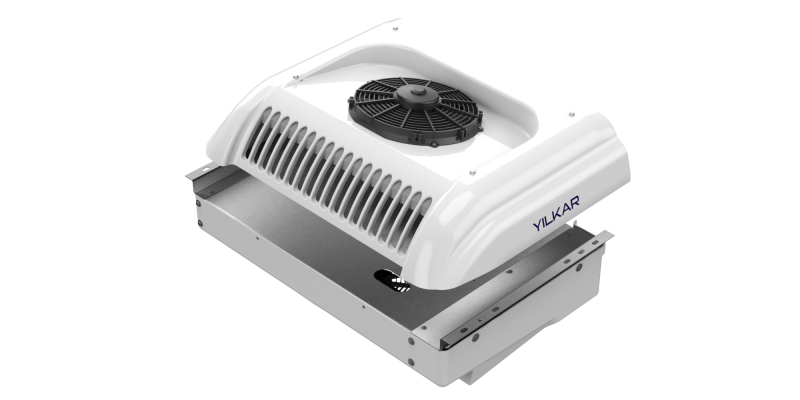

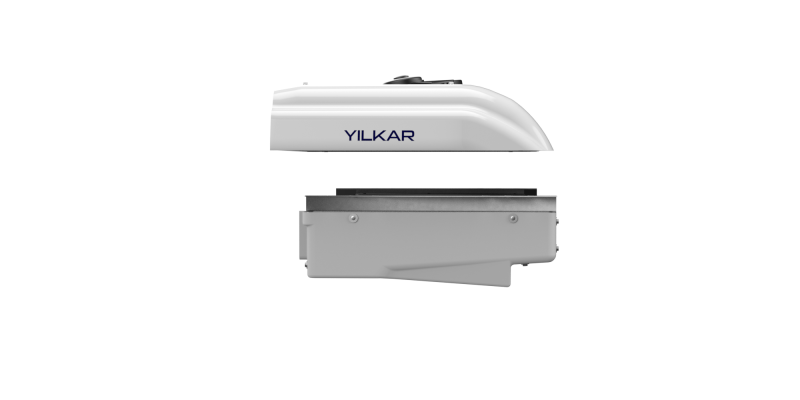

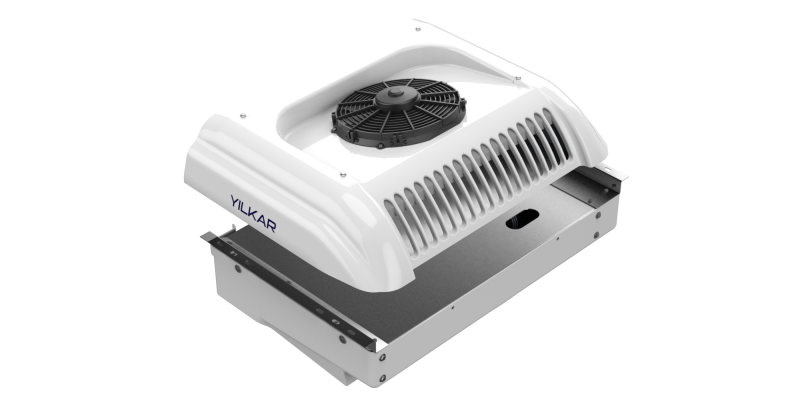

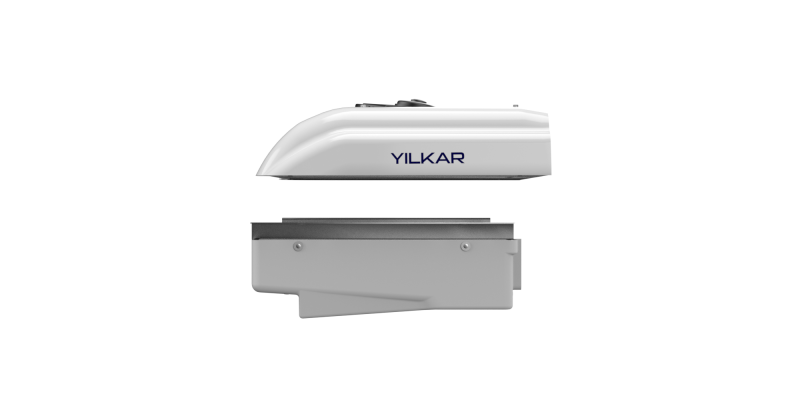

YS 50 Vehicle Cooler
Refrigerated System +4 C ° Transport Cooler
It provides suitable cooling for volumes between 5 - 13 m³.
Maximum cooling capacity is 5 kW.
It circulates 2000 m³/hour chilled air flow in the cabinet.
It is set as an operating voltage of 12 - 24 VDC for motor driven start.
For electric vehicles, the compressor can be selected at the desired voltage.
The maximum current value during operation, excluding the compressor, is 20 A for 12 VDC and 16 A for 24 VDC.
R134a gas is used as the refrigerant.
Compressor protection is available.
Product Documentation
You can download the technical document here.
You can download the ınstallation instruction here.
You can download the wiring diagram here.

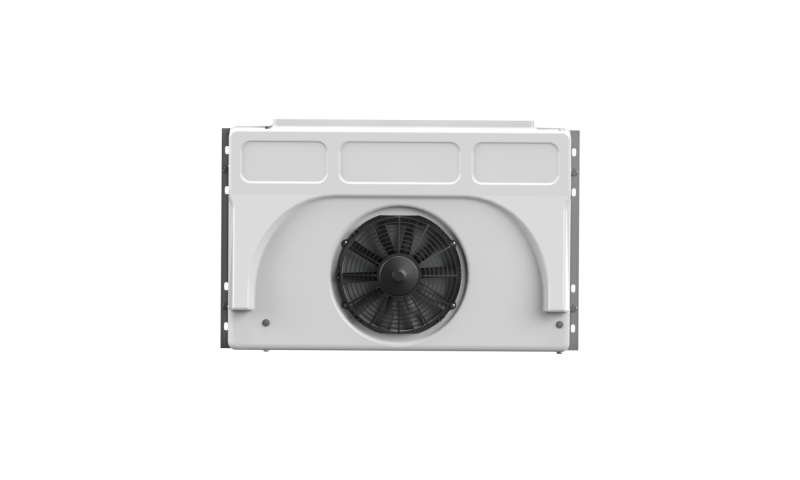

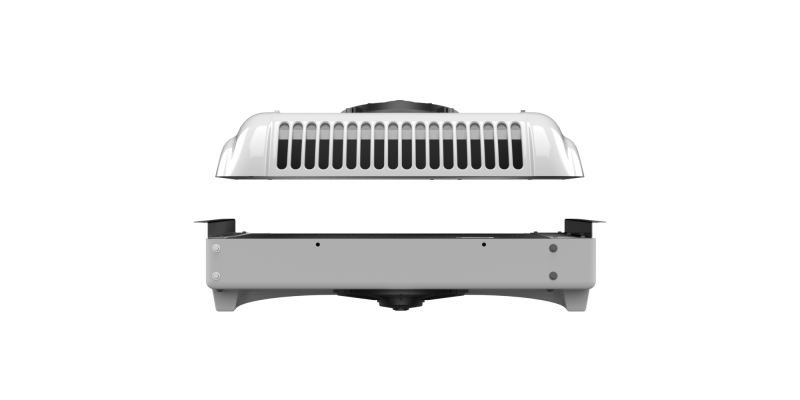

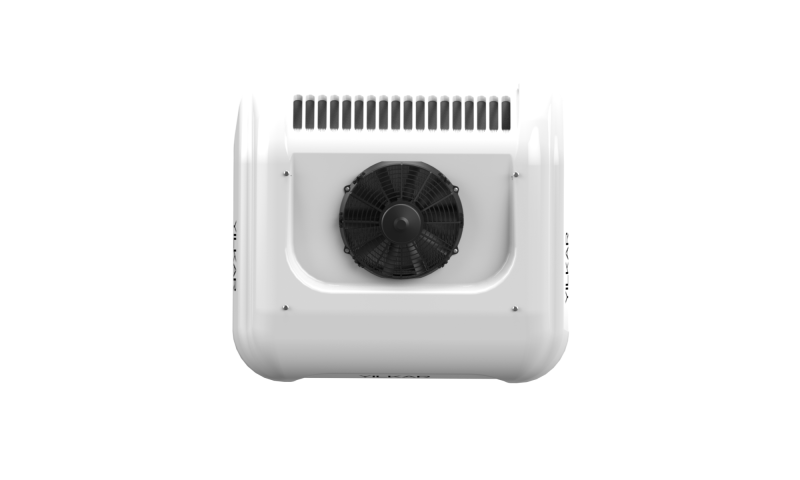

Exterior Unit
Copper tube / Aluminum / Cross Flow compact type high efficiency heat exchanger
One piece axial type motor with 11 inch S blade is used.
Case type aluminum sheet metal piece assembled.
The cover type is cast fiberglass with sunbeam protected paint.

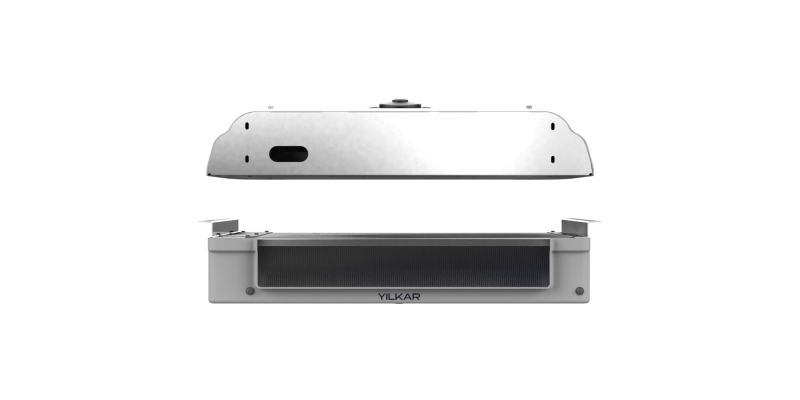

Interior Unit
Copper tube / Aluminum / Cross Flow compact type high efficiency heat exchanger
One piece axial type motor with 11 inch S blade is used.
Case type aluminum sheet metal piece assembled.
The cover type is cast fiberglass with sunbeam protected paint.
Environmentally Friendly, Safe and Comfortable
Control Panel

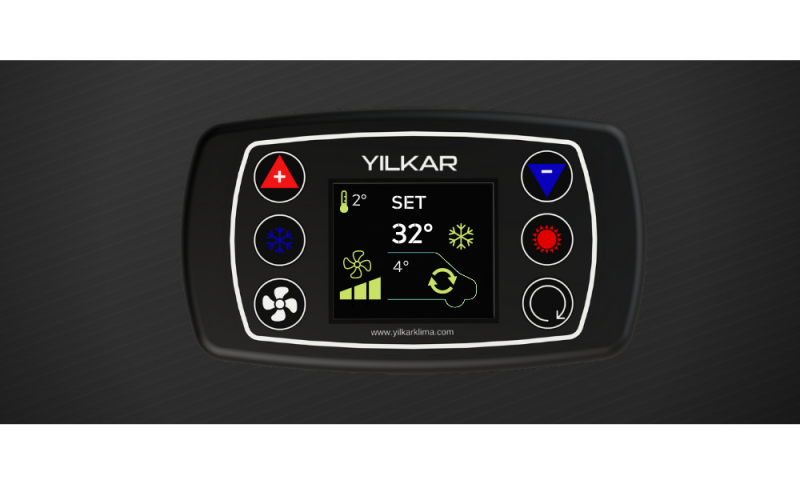

Functional Climatronic Control
Control your thermal comfort as you wish with effective temperature and air speed control.
Interior temperature, exterior temperature, set temperature, fan stage, air inlet valve, and operating mode are shown on a 2.1 inch LCD screen.
Six separate buttons are used. These are used for temperature increase, temperature decrease, cooling operation, heating operation, fan stage, and air inlet valve control.
Thermostat-adjusted temperature control and 3-stage airspeed control are provided.
* Air flap control does not apply to chillers.
* Fan stage control does not apply to chillers.
Features

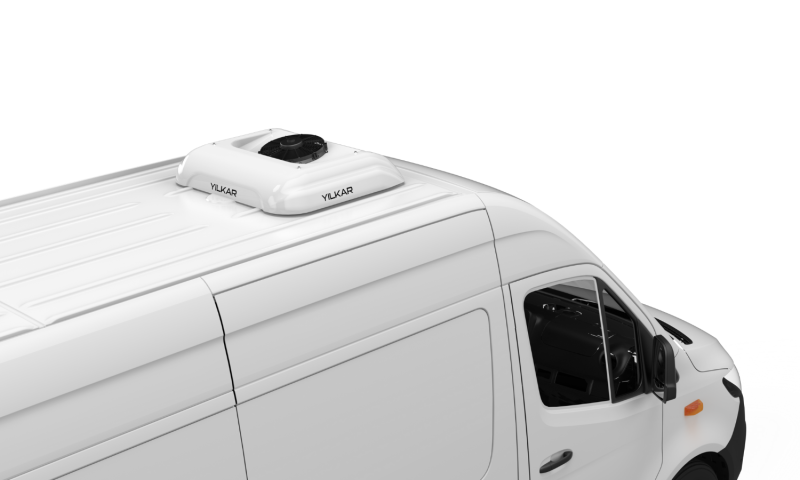

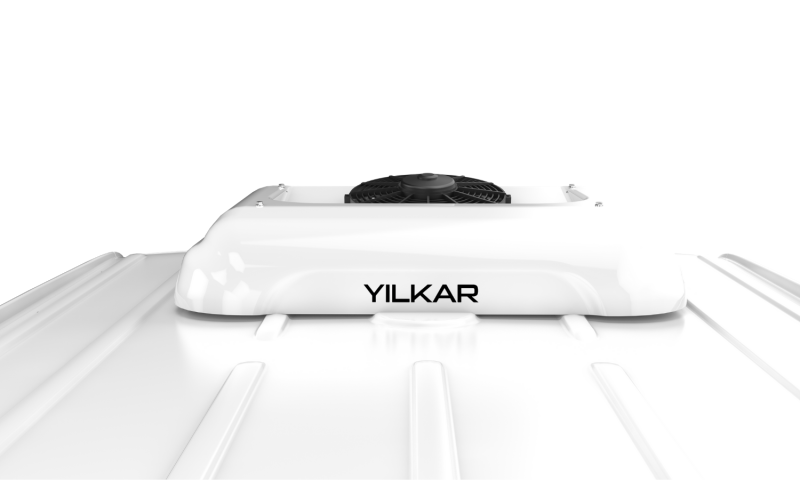

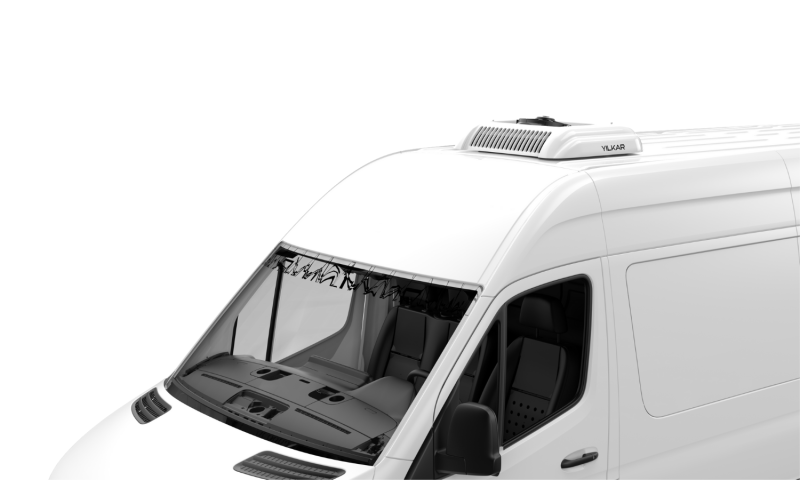

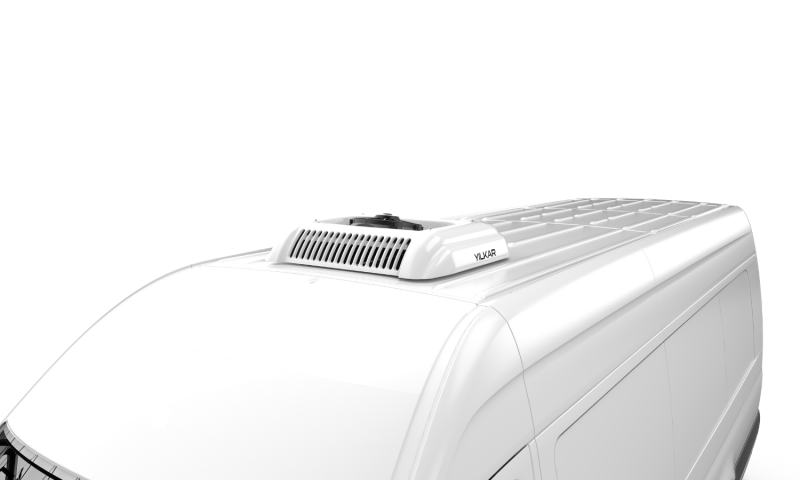

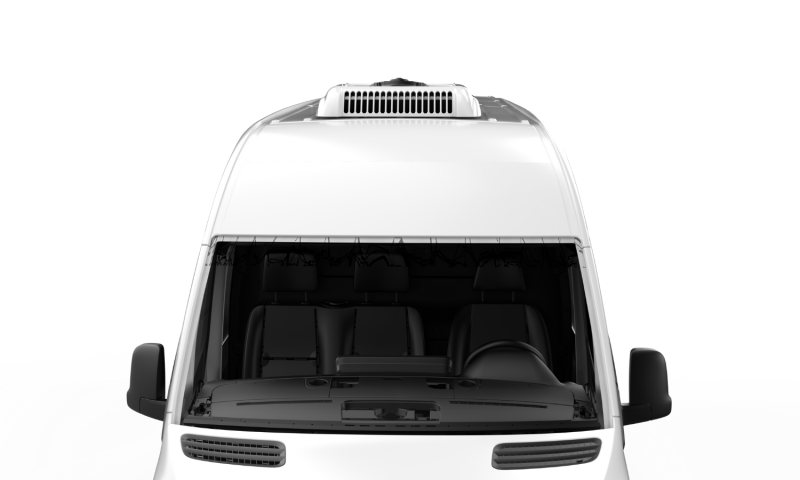

Compatible Lines with Your Vehicle
Yılkar YS 50 cooler provides a harmonious integrity with your vehicle.
Our top covers produced in Yılkar's own facilities have paint protection resistant to the corrosive effects of the sun.
Effective System Performance Control
The efficiency of fluid control determines the quality of your air conditioner
Fluid control protects your compressor by adapting your cooler to variable ambient parameters, keeping its performance at the highest level at all times.
Yılkar has increased the condenser performance in the sector with it’s compact fan design, efficient fans, and micro-channel heat exchanger.
The compact filter and liquid tank, uniquely designed by Yılkar's expertise, offer effective solutions in narrower volumes.
Automatic condenser temperature control and compressor pressure protection are standard in all Yılkar products.
