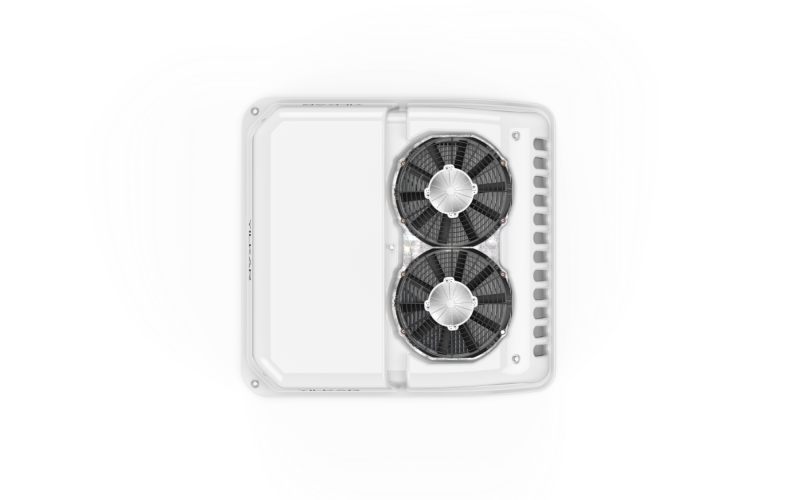

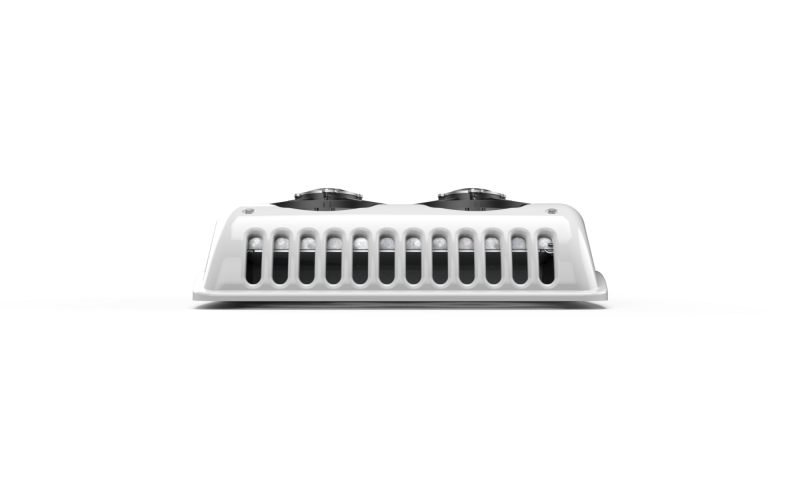

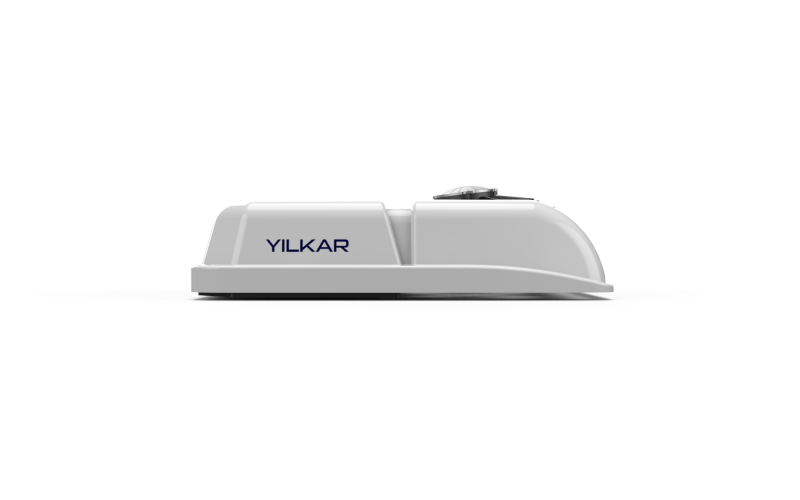

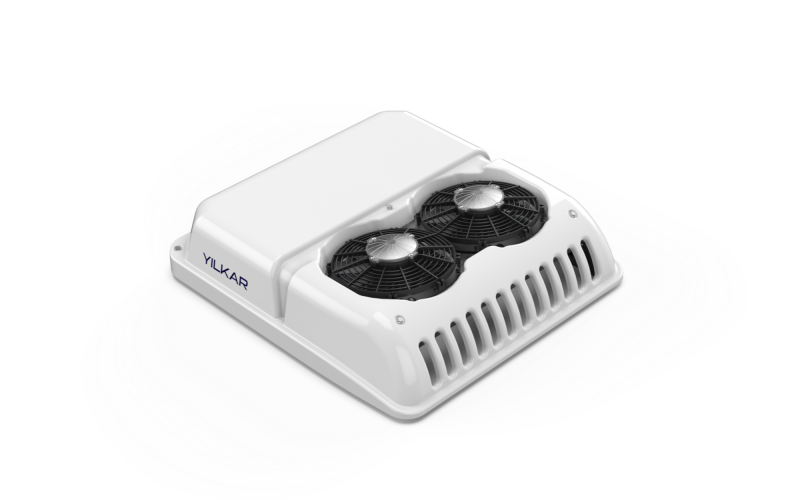

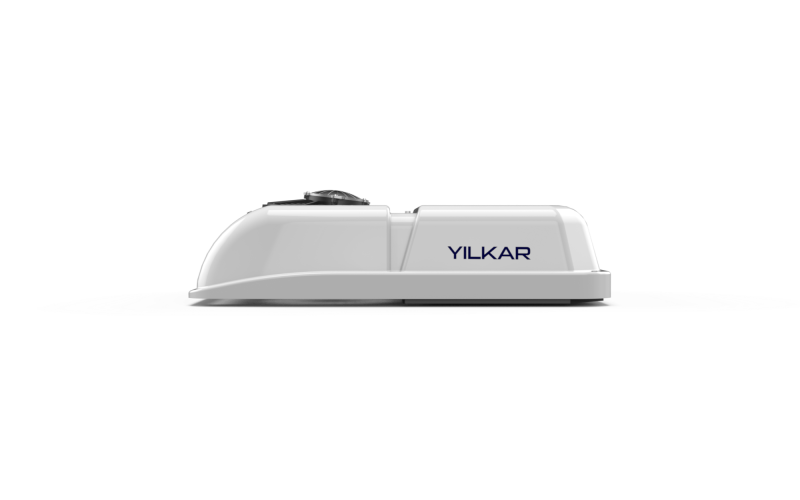

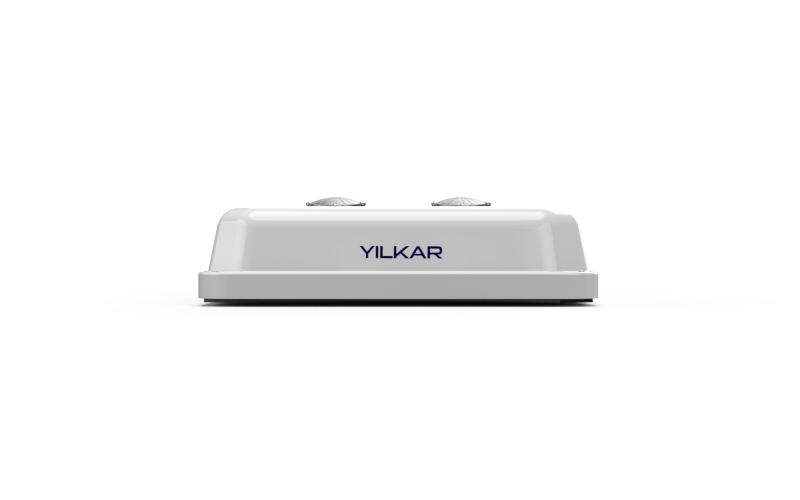

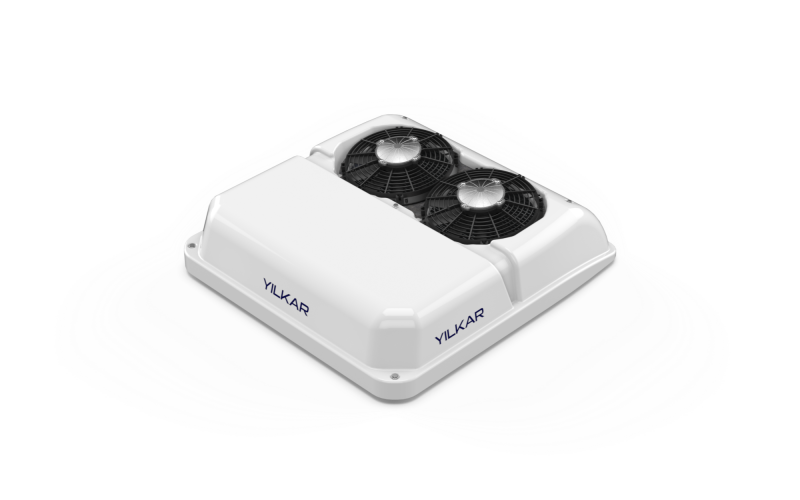

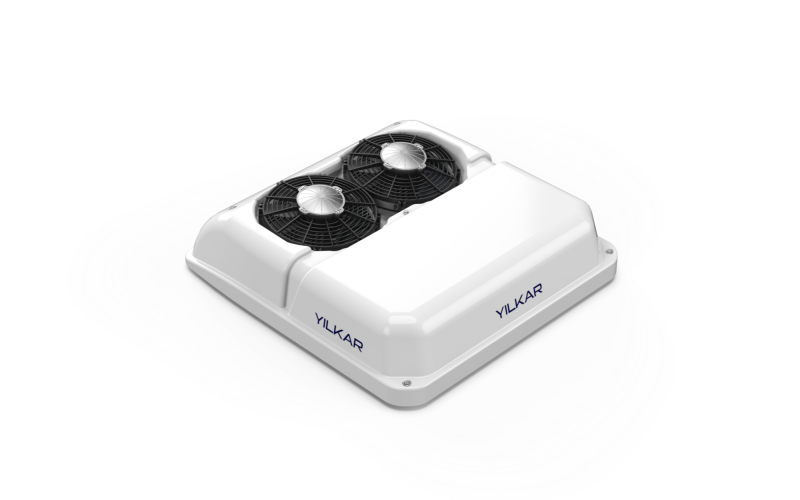

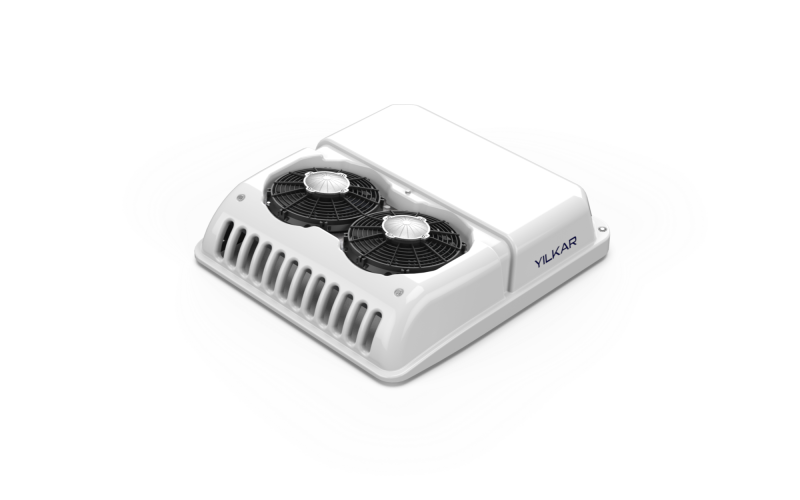

YK 50 MB Monoblock Cabin Airconditioner
Technical Information
Cooling Capacity 5 kW (17060 BTU/h) (4300 kcal/h)
Air Flow 525 m³/h
Performance Limit 45 C° (Dış ortam sıcaklığı)
Operating Current (max.)30 A @12 VDC - 15 A @24 VDC
Outside Dimensions 760 * 800 * 195 mm
Unit Weight 25 kg
Refrigerant R134a
Product Documentation
You can download the technical document here.
You can download the ınstallation instruction here.
You can download the wiring diagram here.
Environmentally Friendly, Safe and Comfortable

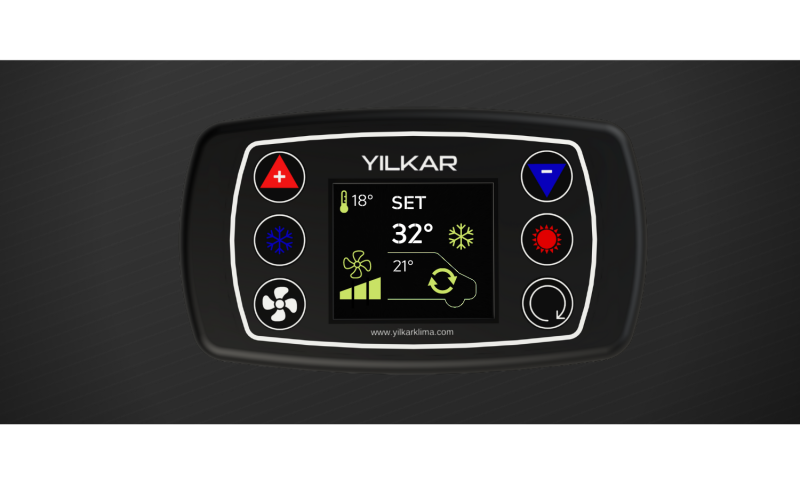

Control Panel
Functional Climatronic Control
Control your thermal comfort as you wish with effective temperature and air speed control.
Indoor temperature, outdoor temperature, set temperature, fan stage, air damper, and operating mode are shown on a 2.1 inch LCD screen.
6 independent buttons are used. These are used for temperature increase, temperature reduction, cooling operation, heating operation, fan stage, and air damper control.
Thermostat-adjusted temperature control and 3-stage airspeed control are provided.
Features

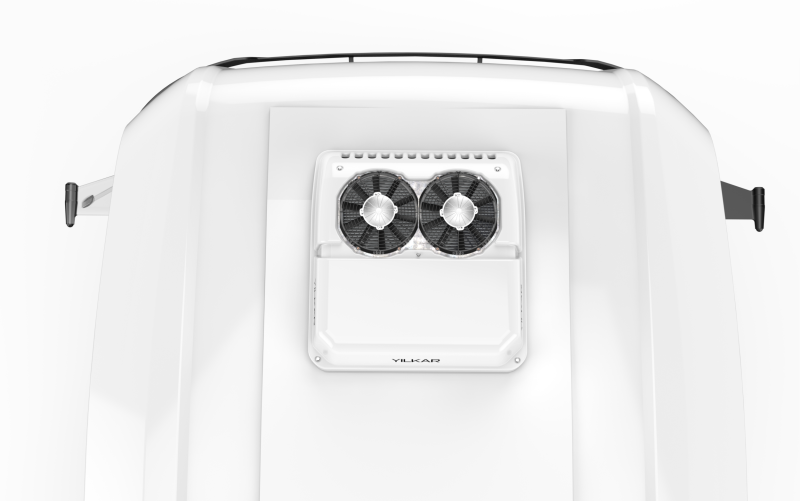

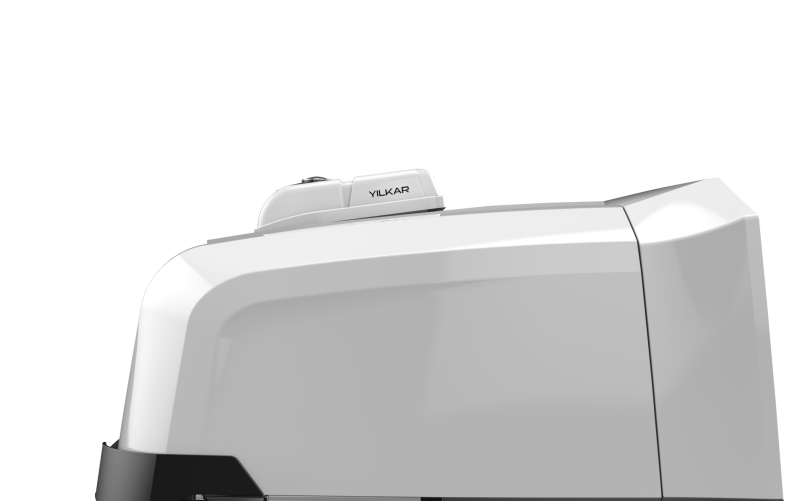

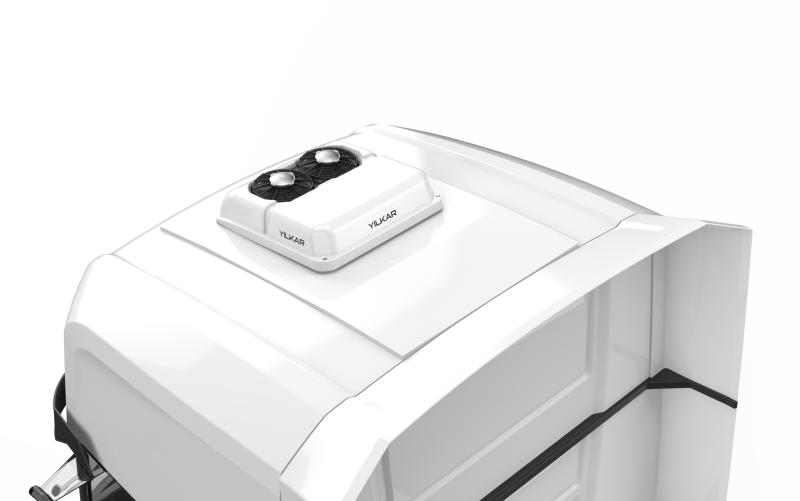

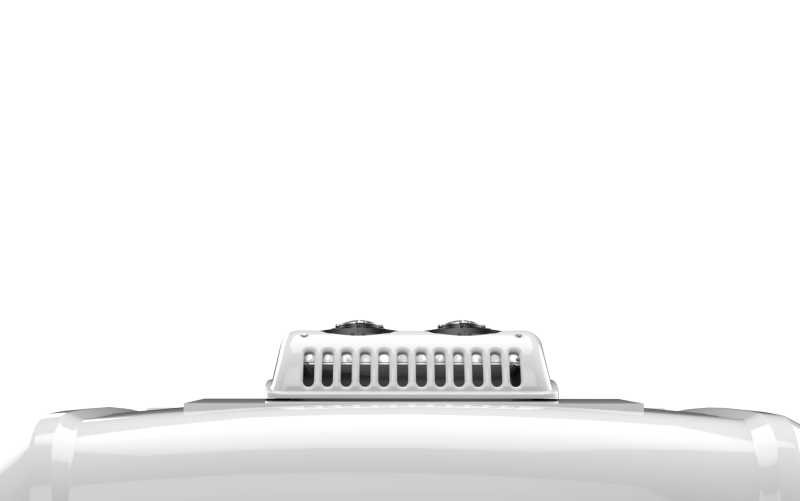

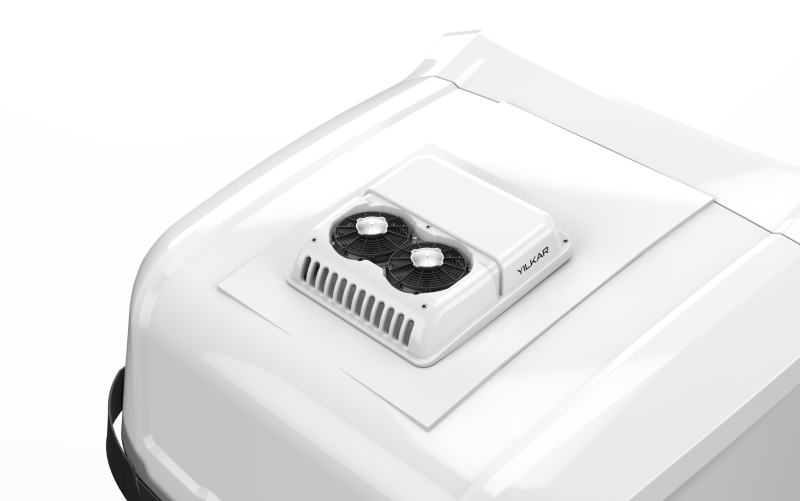

Compatible Lines with Your Vehicle
Yılkar YK 50 MB cabin air conditioner provides integrity in harmony with your vehicle.
Our top covers produced in Yılkar's own facilities have paint protection resistant to the corrosive effects of the sun.

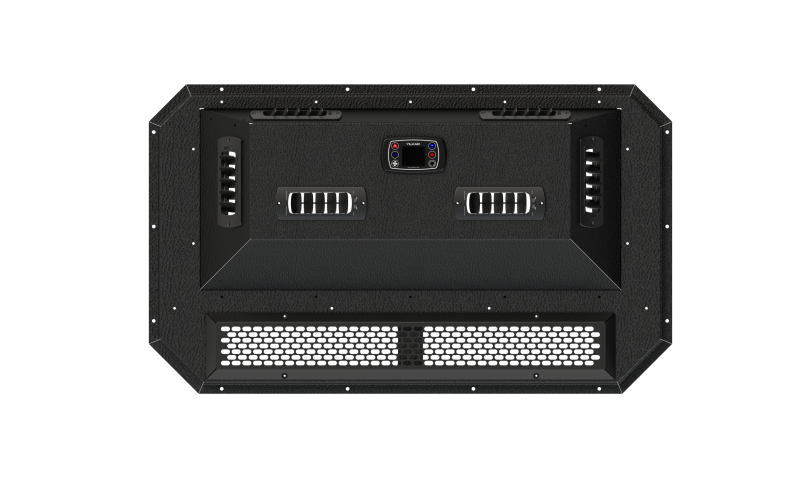

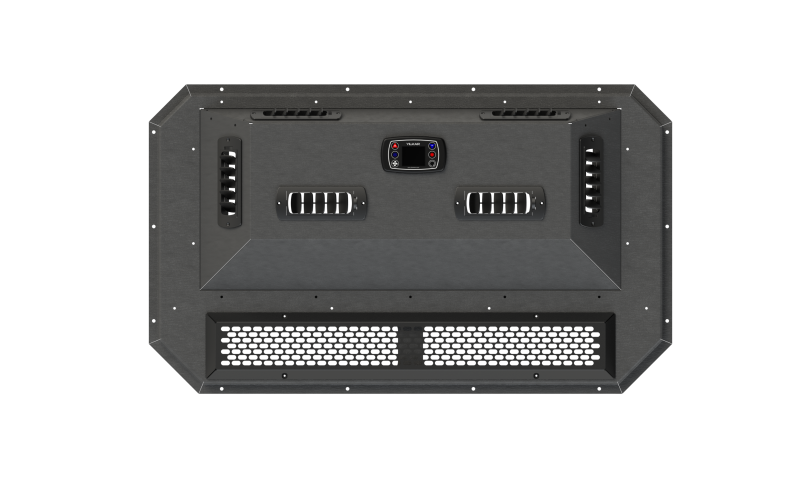

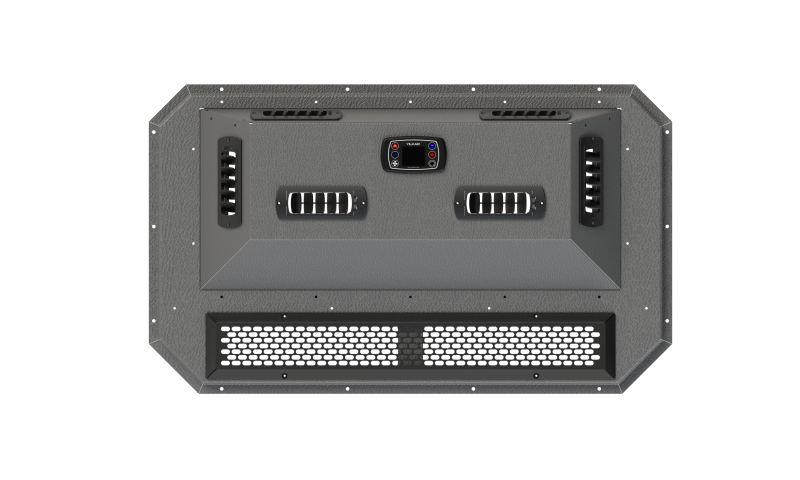

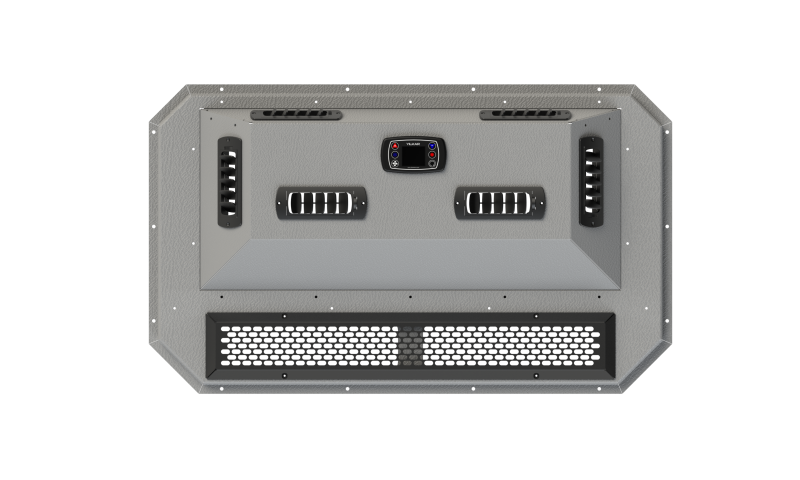

The foldable inner cabin routing apparatus provides integrity with the interior of the vehicle.

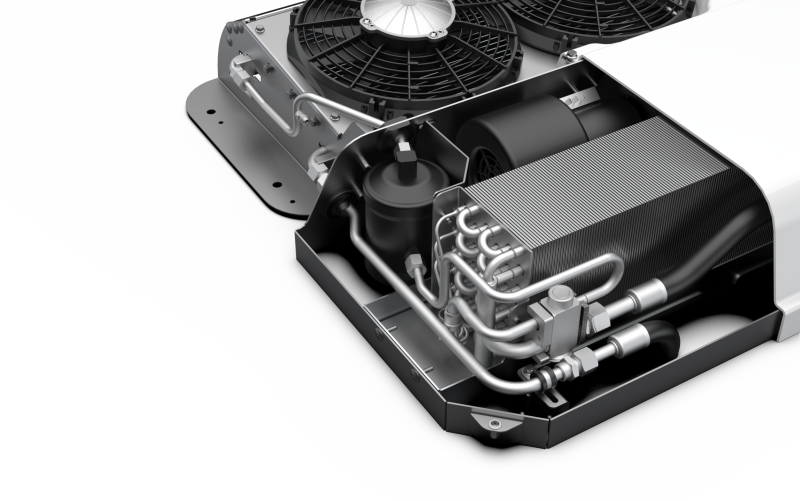

Effective System Performance Control
The efficiency of fluid control determines the quality of your air conditioner
Fluid control protects your compressor by adapting your air conditioner to variable ambient parameters, keeping its performance at the highest level at all times.
Yılkar has increased the condenser performance in the sector with its compact fan cage, efficient fans, and micro-channel heat exchanger.
The compact filter and liquid tank, uniquely designed by Yılkar's expertise, offer effective solutions in narrower volumes.
Automatic condenser temperature control and compressor pressure protection are standard in all Yılkar air conditioners.
ECE R10 Certificate
Electromagnetic compatibility approval
This certificate is the type approval test for European automotive electronics. Our monoblock air conditioners have been subjected to and successfully passed various tests, including RF immunity and emissions, temporary immunity and emissions.
It electrically meets the requirements for residual burst, fluctuating harmonics, and vibration.
As a result of the tests carried out in Luxemburg, it was certified with the document number E13 R10 - 05 13505.
You can download the relevant certificate here.
