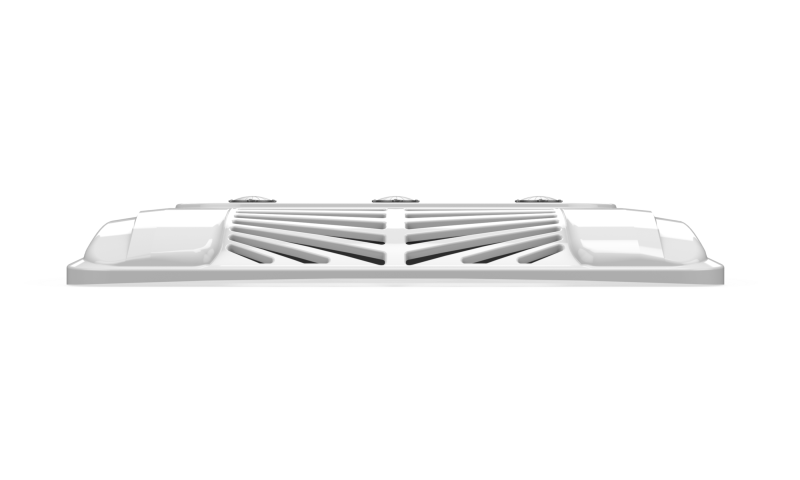

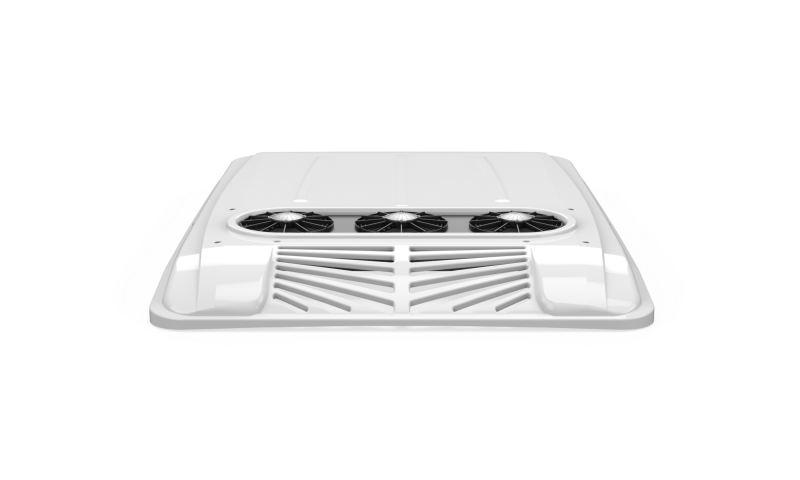

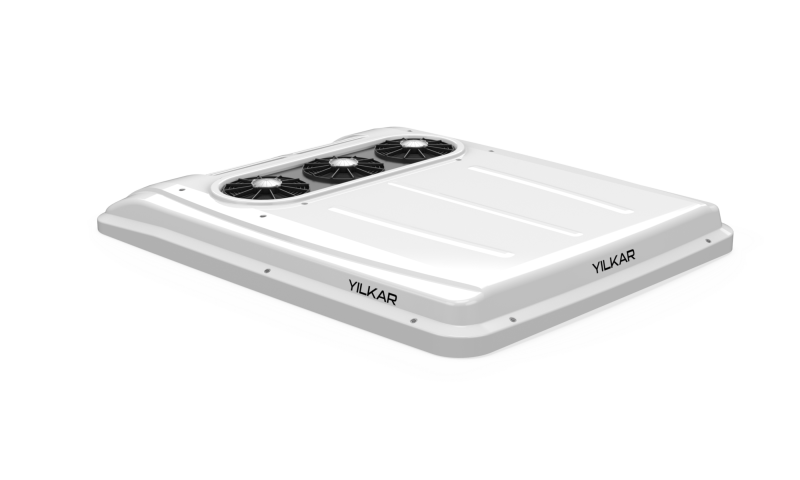

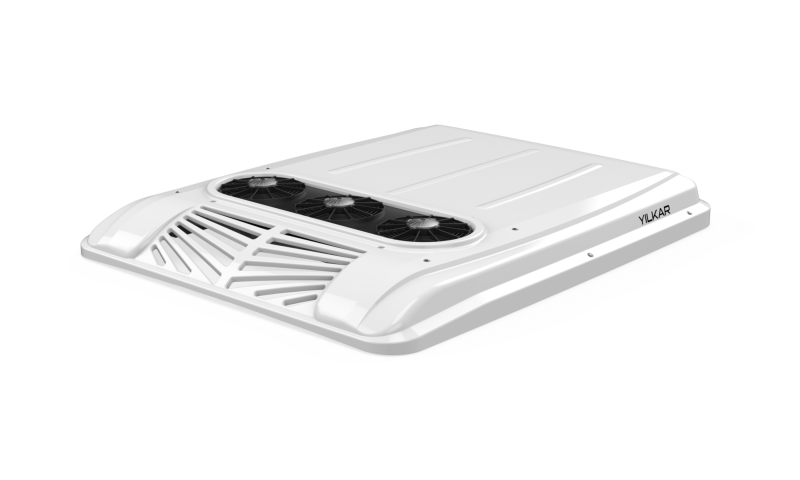

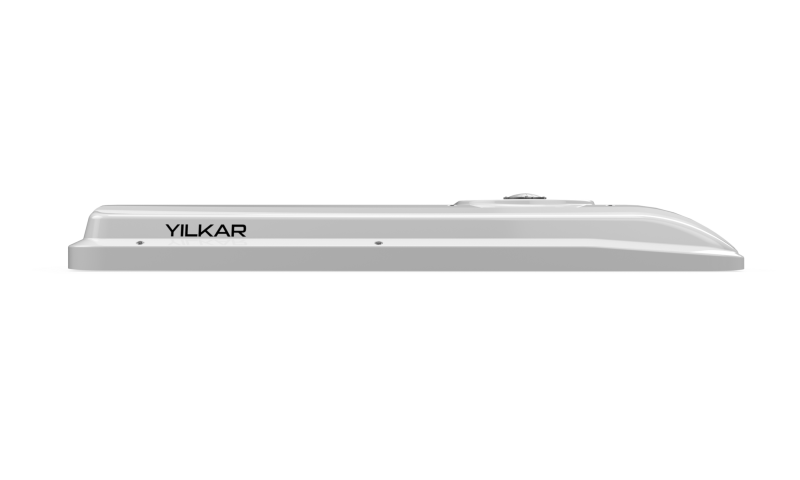

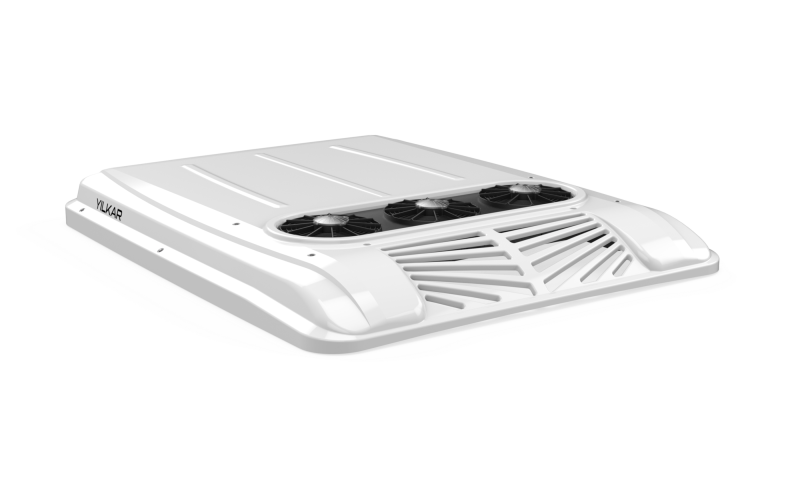

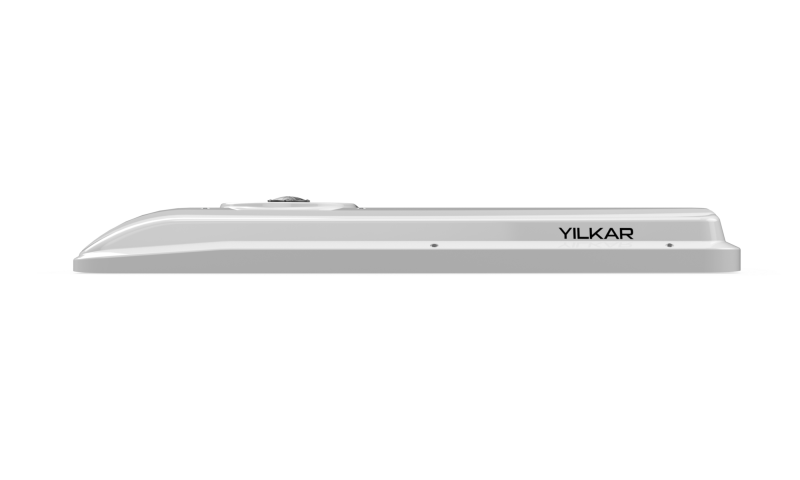

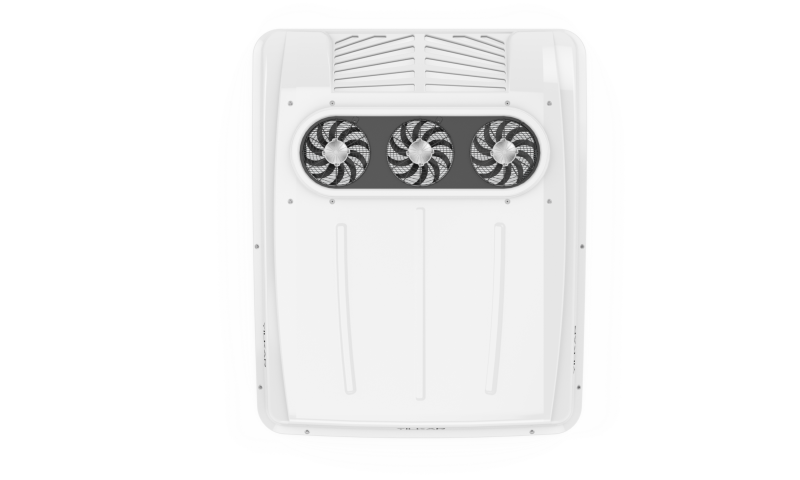

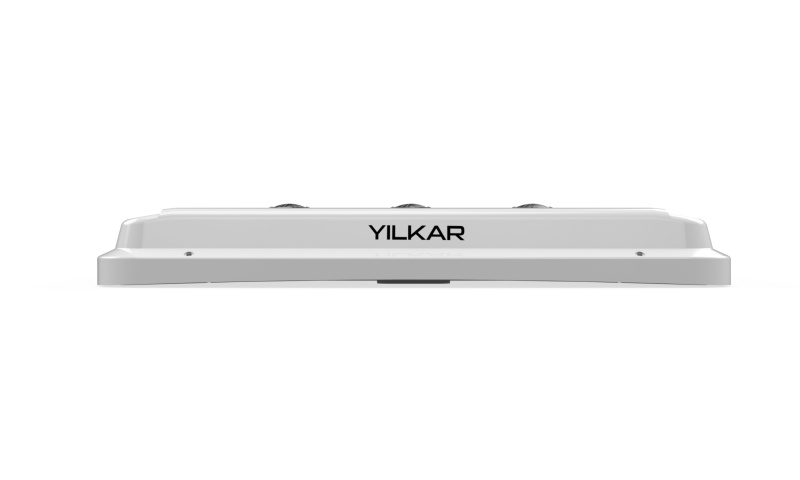

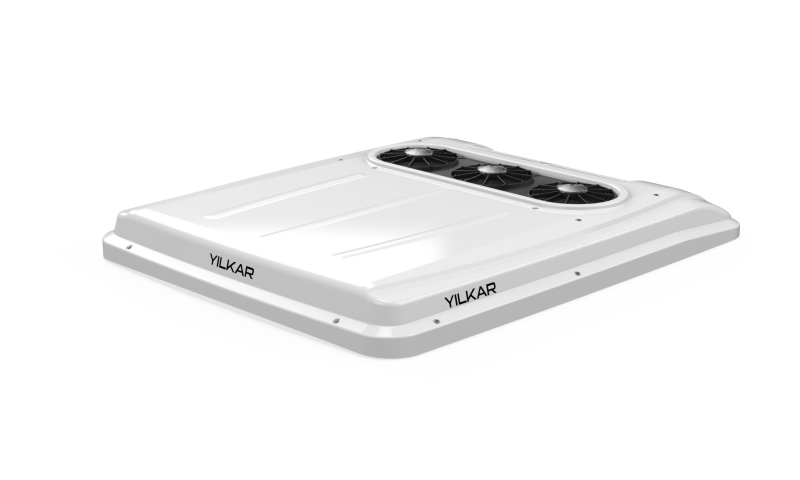

YK 190 MB L Rooftop Airconditioner
Technical Information
Cooling Capacity 14 - 19 kW (47000 - 65000 BTU/h) (12000 - 16300 kcal/h)
Heating Capacity 18000 kcal/h (Optional)
Fresh Air %0 - %50 (Optional)
Air Flow 3600 m³/h
Performance Limit 45 C° (Outdoor temperature)
Operating Current (max.)78 A @12 VDC - 43 A @24 VDC
Outside Dimensions 1600*1960*230 mm
Unit Weight 75 kg
Refrigerant R134a
Options
Electric fresh air flap can be added.
Rooftop heating feature can be added.
Brushless blower motor can be used for the evaporator.(24 VDC)
Hose and electrical connections can be set to right or left .
Product Documentation
You can download the technical document here.
You can download the ınstallation instruction here.
You can download the wiring diagram here.

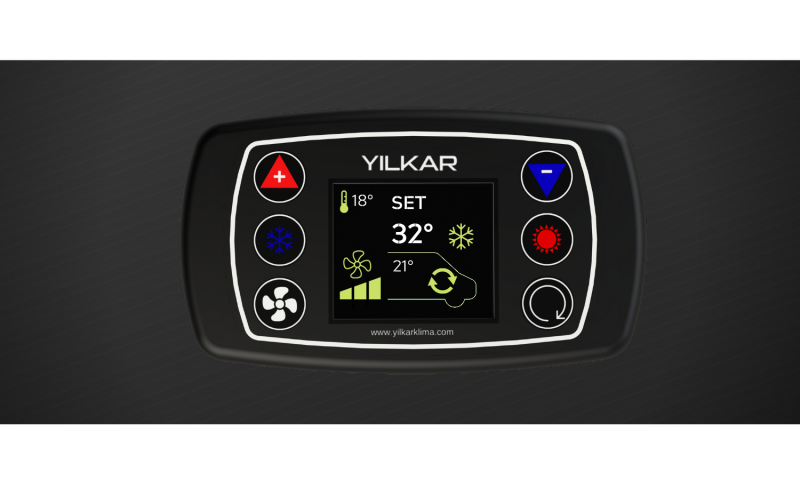

Control Panel
Functional Climatronic Control
Control your thermal comfort as you wish with effective temperature and air speed control.
Indoor temperature, outdoor temperature, set temperature, fan stage, air damper, and operating mode are shown on a 2.1 inch LCD screen.
6 independent buttons are used. These are used for temperature increase, temperature reduction, cooling operation, heating operation, fan stage, and air damper control.
Thermostat-adjusted temperature control and 3-stage airspeed control are provided.
Environmentally Friendly, Safe and Comfortable Air Conditioning
Featured Properties

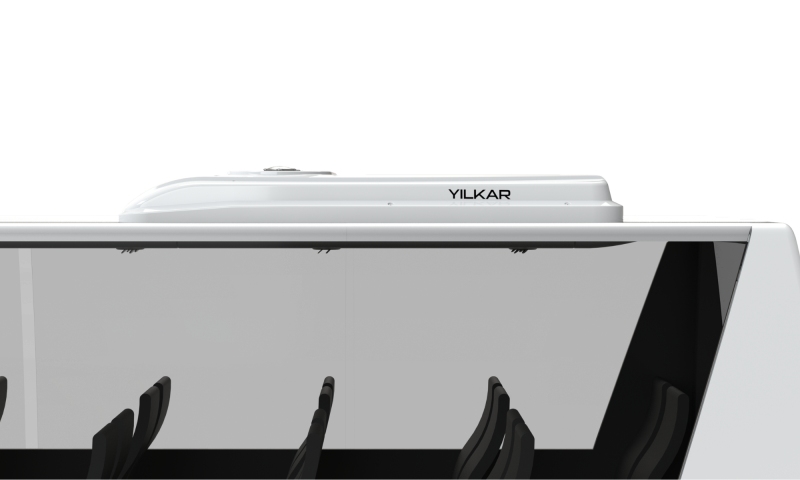

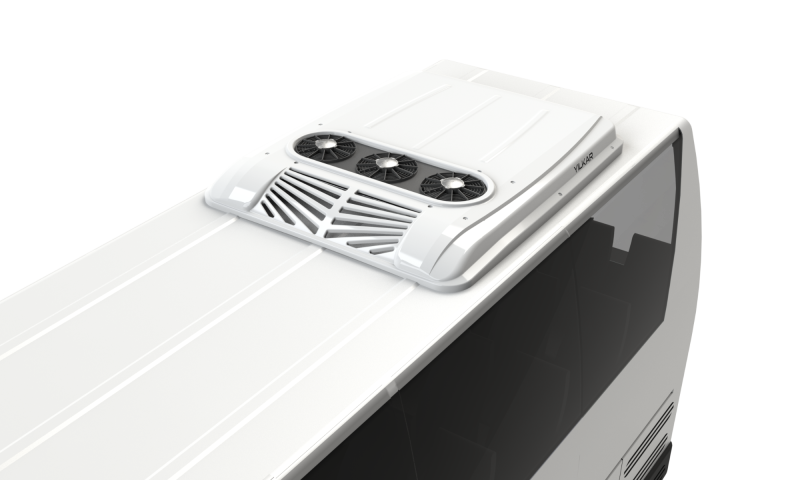

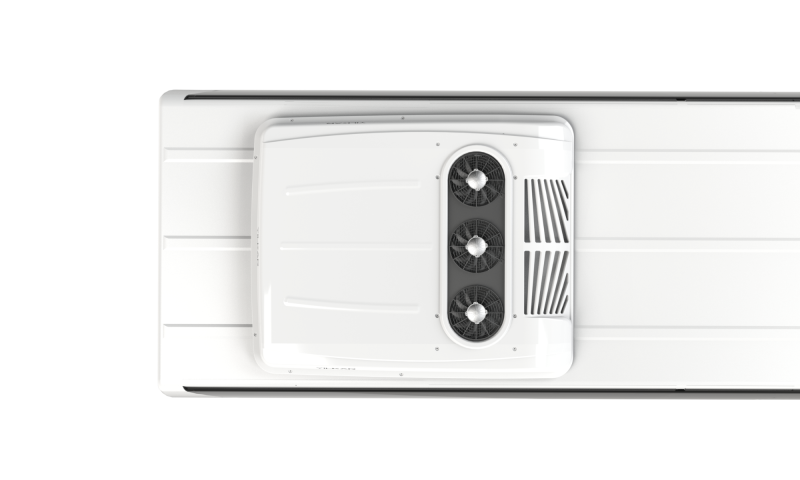

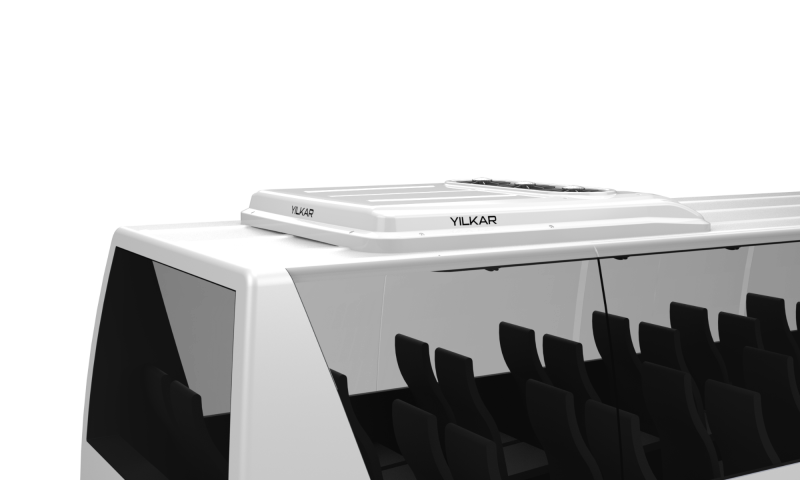

Compatible Lines with Your Vehicle
Yılkar monoblock rooftop air conditioners provide an integrity in harmony with your vehicle with longitudinal lines.
Thanks to its compact design, it contains all the parts of your air conditioner, allowing you to have more usable space in your vehicle.
Our top covers produced in Yılkar's own facilities have paint protection resistant to the corrosive effects of the sun.

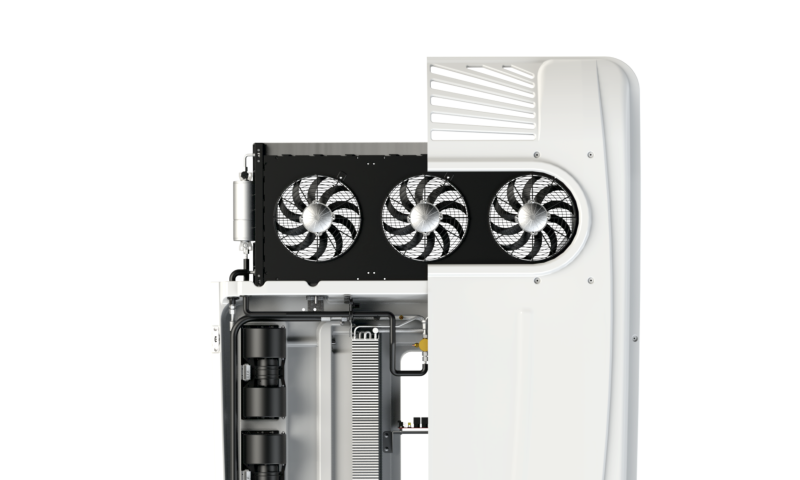

Effective System Performance Control
The efficiency of fluid control determines the quality of your air conditioner
Fluid control protects your compressor by adapting your air conditioner to variable ambient parameters, keeping its performance at the highest level at all times.
Yılkar has increased the condenser performance in the sector with its compact fan cage, efficient fans, and micro-channel heat exchanger.
The compact filter and liquid tank, uniquely designed by Yılkar's expertise, offer effective solutions in narrower volumes.
Automatic condenser temperature control and compressor pressure protection are standard in all Yılkar air conditioners.
.jpg)
Heating (Optional)
Add a heating function to your air conditioner besides cooling
The heat exchanger (in red) is added to the device content to gain a heating function.
Yılkar can add heating power to your air conditioner with its design that makes the inert heat generated in your engine usable for air conditioning your vehicle. In this way, the cooling of your engine will be more effective and your vehicle will warm up. Your passengers enjoy comfort in all seasons.
Heating can be added to your device optionally, it is our application that is out of the standard content of the device. It is produced specially for you according to your request.
.jpg)
Fresh Air Flap (Optional)
Improve the air quality in your vehicle
With the fresh air flap (in blue color) that can be added to the air conditioning unit, it provides 50% fresh air to your vehicle while the air conditioner is running.
This filtered air entering your vehicle is delivered to your vehicle at the desired temperature after passing through our air conditioning terminal. In this way, air quality is optimized as well as thermal comfort in your passengers' environment.
The fresh air flap is optionally added to your air conditioner, it is our application that is out of the standard content of the device. It is produced specially for you according to your request.
ECE R10 Certificate
Electromagnetic compatibility approval
This certificate is the type approval test for European automotive electronics. Our monoblock air conditioners have been subjected to and successfully passed various tests, including RF immunity and emissions, temporary immunity and emissions.
It electrically meets the requirements for residual burst, fluctuating harmonics, and vibration.
As a result of the tests carried out in Luxemburg, it was certified with the document number E13 R10 - 05 13505.
You can download the relevant certificate here.
